See the change before it becomes a problem.

Name: TURB Series Turbidity Sensor
Brand: Halogen Systems

Add turbidity measurement alongside your Halogen sensor system. Contact our team to confirm sensor compatibility, D20 configuration and availability for your application.

Get an early look Explore the technology

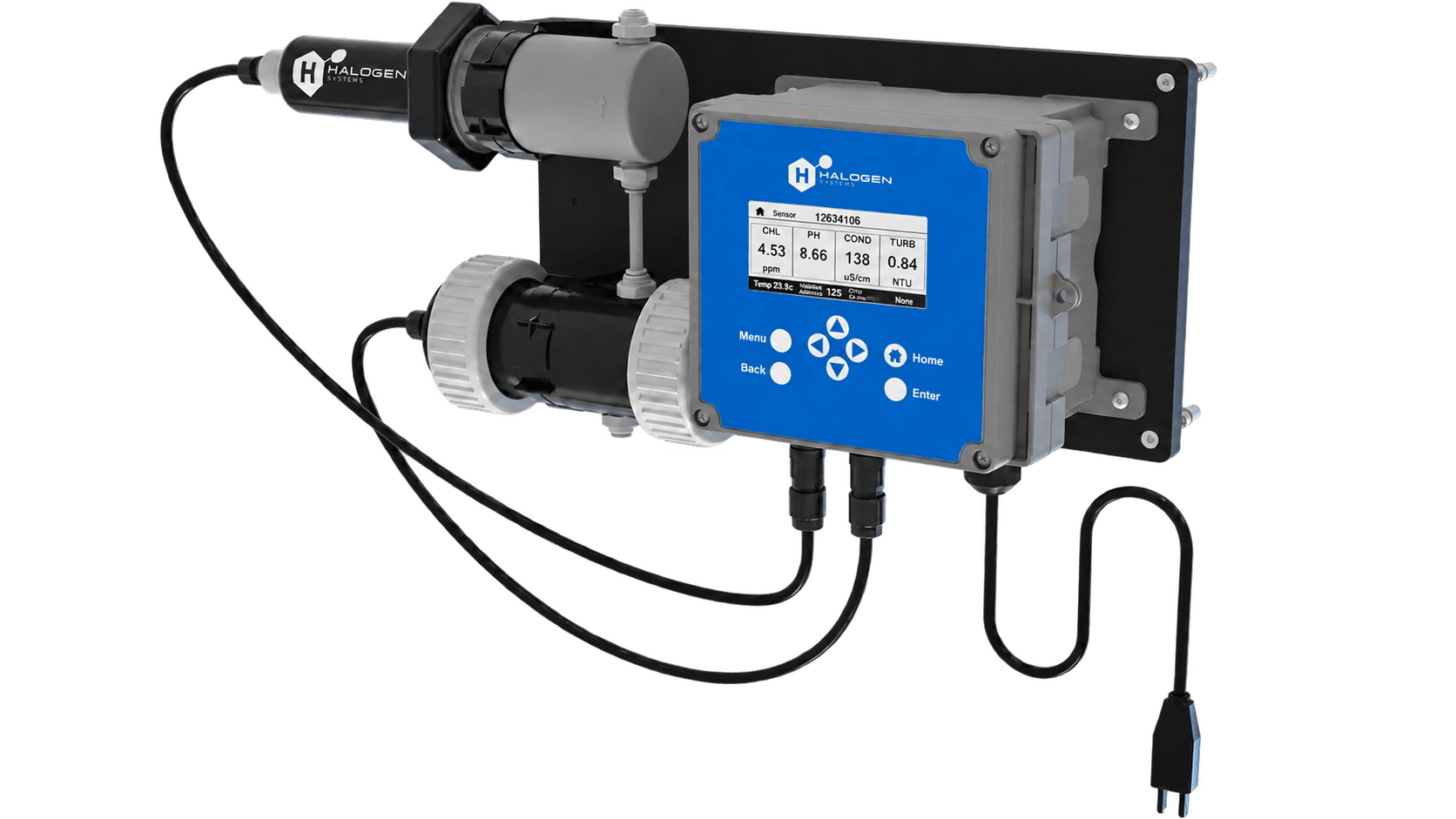

Halogen turbidity and chlorine monitoring system with D20 controller

One D20 display

Six or eight parameters

D20platform

Confirm compatible system configuration

0.001NTU

Resolution on the lowest range

2sec

Measurement and auto-zero cycle

One platform. More insight.

Turbidity joins your MP system.

The turbidity probe is an add-on to a compatible Halogen sensor system. It installs in a pressure-managed flow cell on the same side-stream, while the D20 handles display, alarms, analog output, and cloud reporting for the complete system.

ISO 7027 / EN 27027 measurement

A pulsed infrared source and 90-degree detector minimize the influence of sample color on the reading.

Self-checking optics

A continuous check signal watches the optical window and sample presence, helping the controller distinguish a real process change from fouling, stray light, or a dry cell.

Auto-zero, every cycle

The pulsed infrared source re-zeroes with every two-second measurement cycle to protect accuracy where near-zero drift is easiest to see.

Quiet trends. Fast response.

Dual response filters smooth normal process noise while preserving a fast response to a meaningful breakthrough event.

Built for the water you manage

One measurement. More confident decisions.

Watch filtration performance and catch process changes without building a separate analyzer panel. Review turbidity alongside your existing water-quality measurements on a compatible D20 configuration.

Filter effluentDrinking water treatmentDistribution monitoringWastewater treatmentPools and aquaticsProcess water

Technical preview

Three selectable ranges

Low range: 0-4.000 NTU; 0.001 NTU resolution
Mid range: 0-40.00 NTU; 0.01 NTU resolution
High range: 0-400.0 NTU; 0.1 NTU resolution
Sample pressure: Up to 6 bar; At 25°C / 77°F

Launching soon

Ready to see turbidity and chlorine together?

Tell us where you monitor and what you need to see. We’ll help you explore the right configuration as launch approaches.

Talk with a specialist

DISCUSS YOUR APPLICATION

Review your monitoring point with Halogen.

Bring your water chemistry, installation requirements and questions about the right configuration.
