Safety & Product Overview
Critical Safety Warnings
Follow all DANGER, WARNING, and CAUTION instructions.
Installation must be performed by qualified personnel only.
Product Description & Key Features
Measures chlorine in pH up to 9.0
Direct pipe insertion – No external flow cell needed.
Self-cleaning system reduces maintenance.
No waste stream → Saves treated water.
Compatible with SCADA & Modbus RTU for remote monitoring.
Constructed with 316 stainless steel for durability.

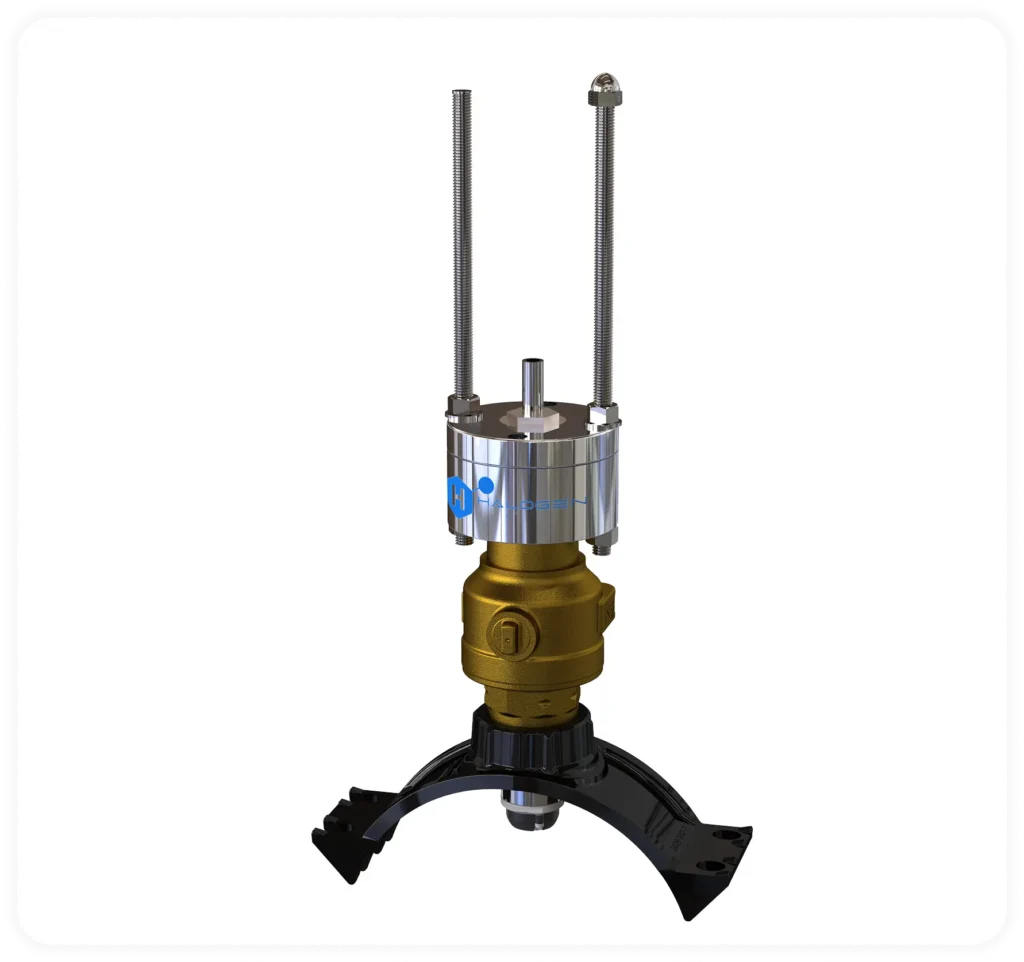

Installation Process
Step-by-step guide for installing the Wet Tap Sensor safely and efficiently.
Threaded Rod
Secures the sensor in place.
Remover Cap
Connects the sensor to the pipeline.
Sensor Probe
Detects chlorine and other parameters.
Pipe Saddle
Provides stability and attachment to the valve.

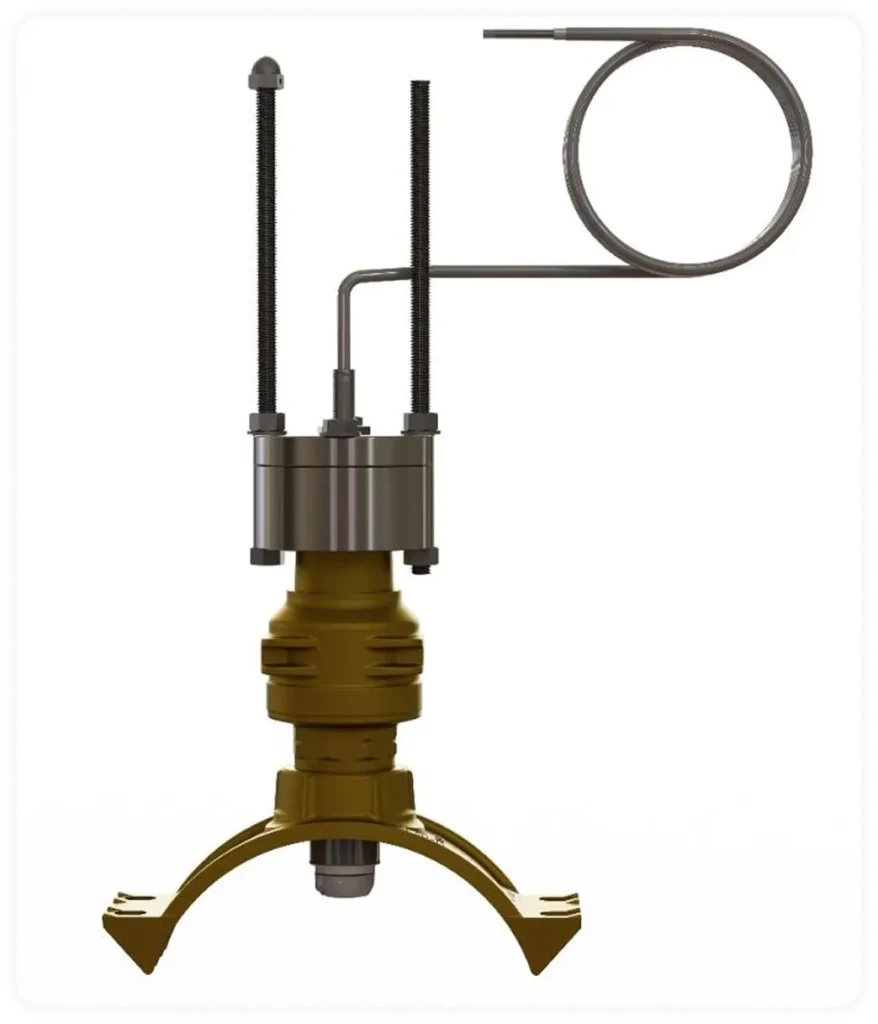

Final Steps Securing & Activating the Sensor
Secure the remover cap onto the 2” Corp Stop Valve.
Align the outlet port before inserting the sensor.
Open the Wet Tap Valve and push the sensor into the pipeline.
Secure with hex nuts & washers.

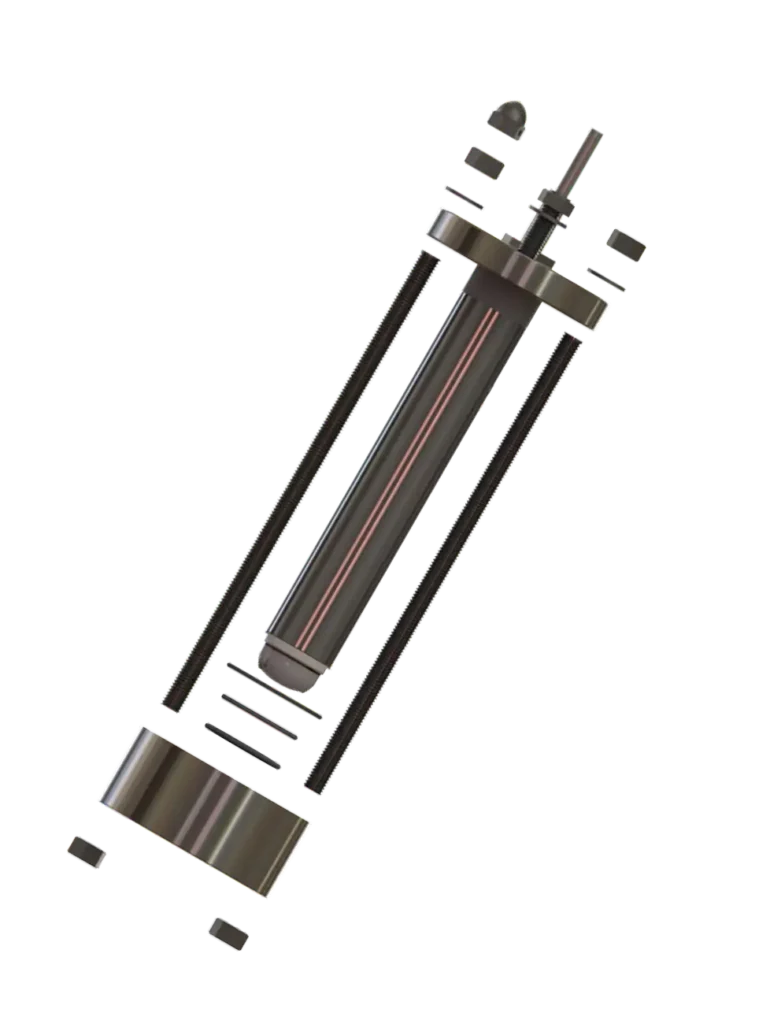

Replacement Parts & Maintenance
Spare Parts Available
Hex Nut & Washer Sets
All-Thread Shaft
Replacement Sensor Sleeves & O-Rings
Cap Nut & Bolts
Routine Maintenance
Minimal maintenance required due to the self-cleaning system.
Annual check recommended to ensure proper operation.
Warranty & Support
1-Year Limited Warranty
Covers defects in materials and workmanship.
Does not cover misuse, neglect, or unauthorized repairs.
Return authorization required before sending a product back.
